Spray Scalding Tunnel

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

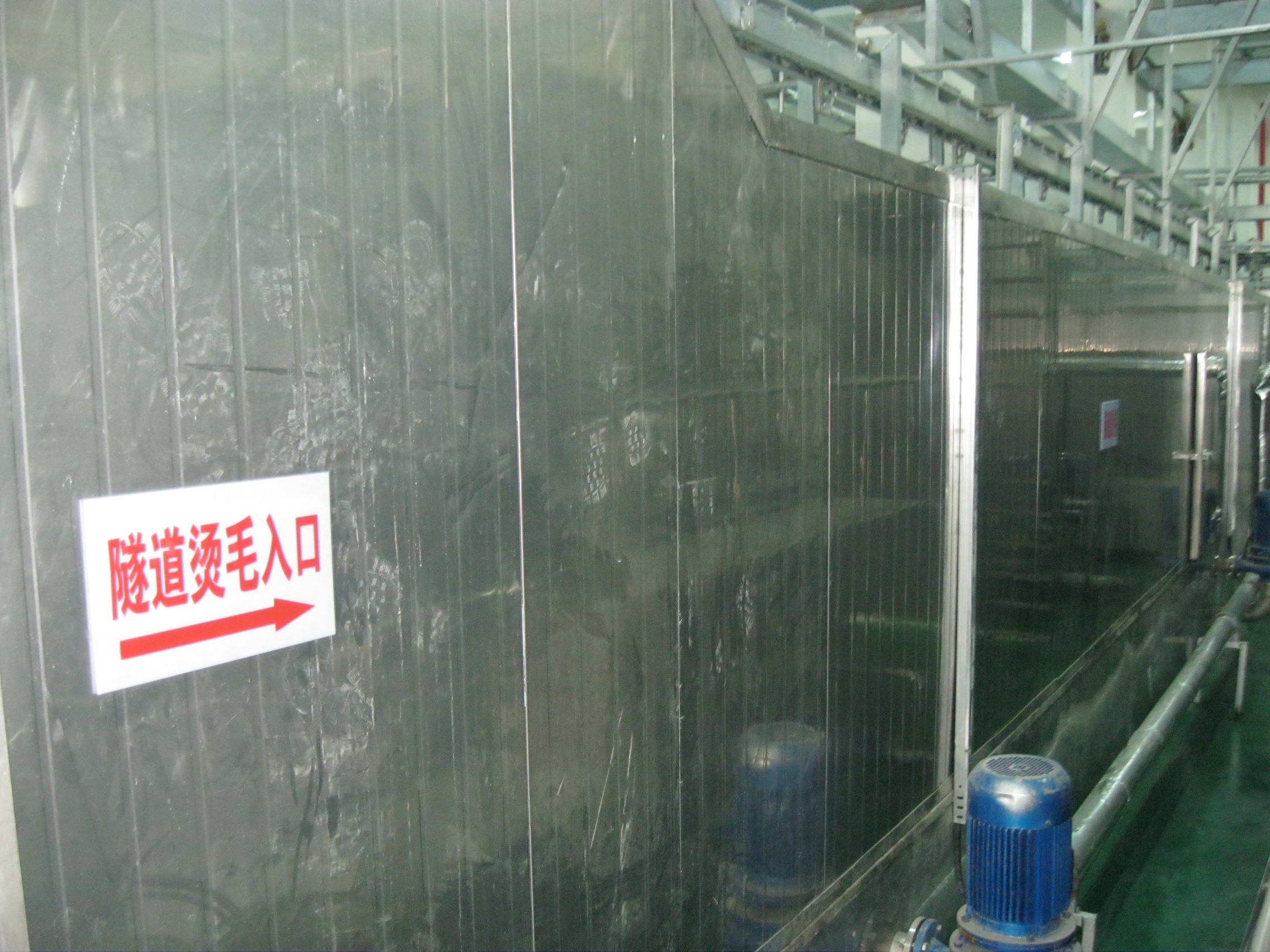

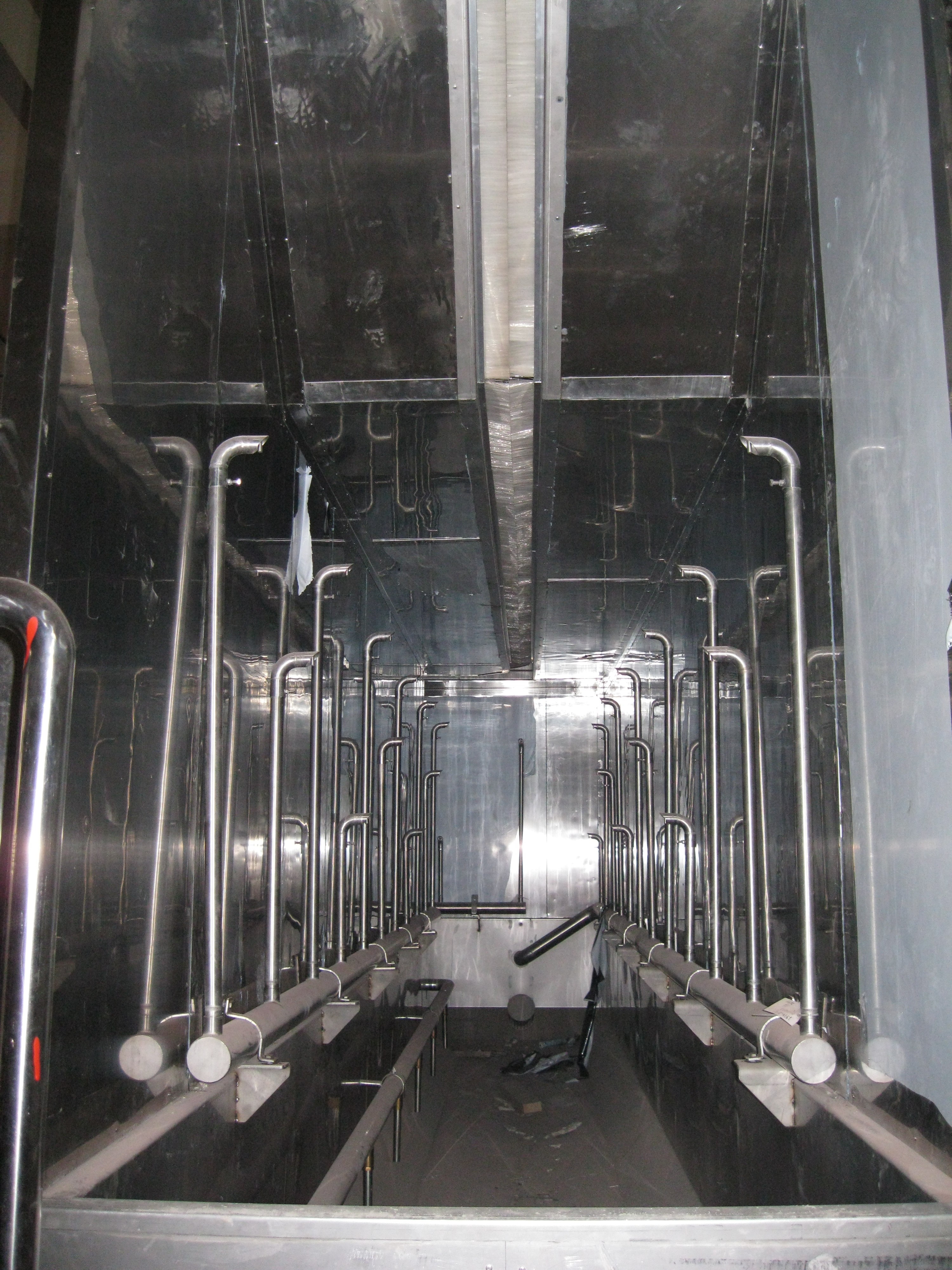

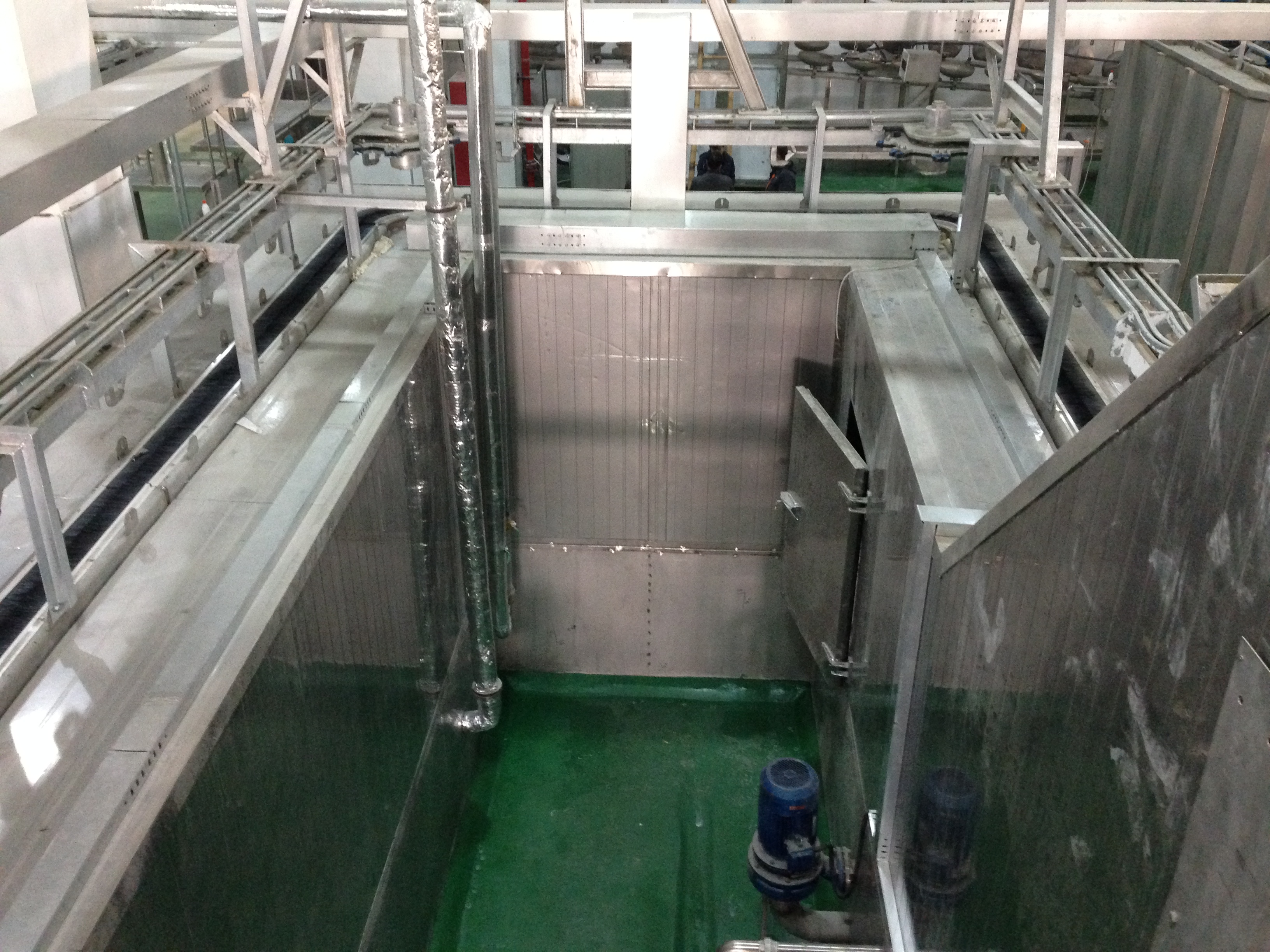

during the circulation process in a closed and well insulated scalding tunnel water with a temperature of approx. 60 - 62℃ is sprayed out of special spray nozzles to the free hanging carcasses.

high capacity pumps are pumping the water out of a steam heated
industrial water tank into the spray system integrated in the tunnel.

stainless steel
scalding time: approx. 6min
total length: approx. 16.5m
number of sections: 4
sealed and insulation structure, in order to save energy
steam consumption: approx. 1KG/carcass
water consumption: approx. 12KG/carcass
power: 380V 50HZ 5.5KW x4

including:
1 entrance
1 sliding door for maintenance
1 dehairer infeed chute sealed and insulation structure, with 1 sliding door
1 water level control system
1 temperature auto control system
