Automatic high frequency stunner

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

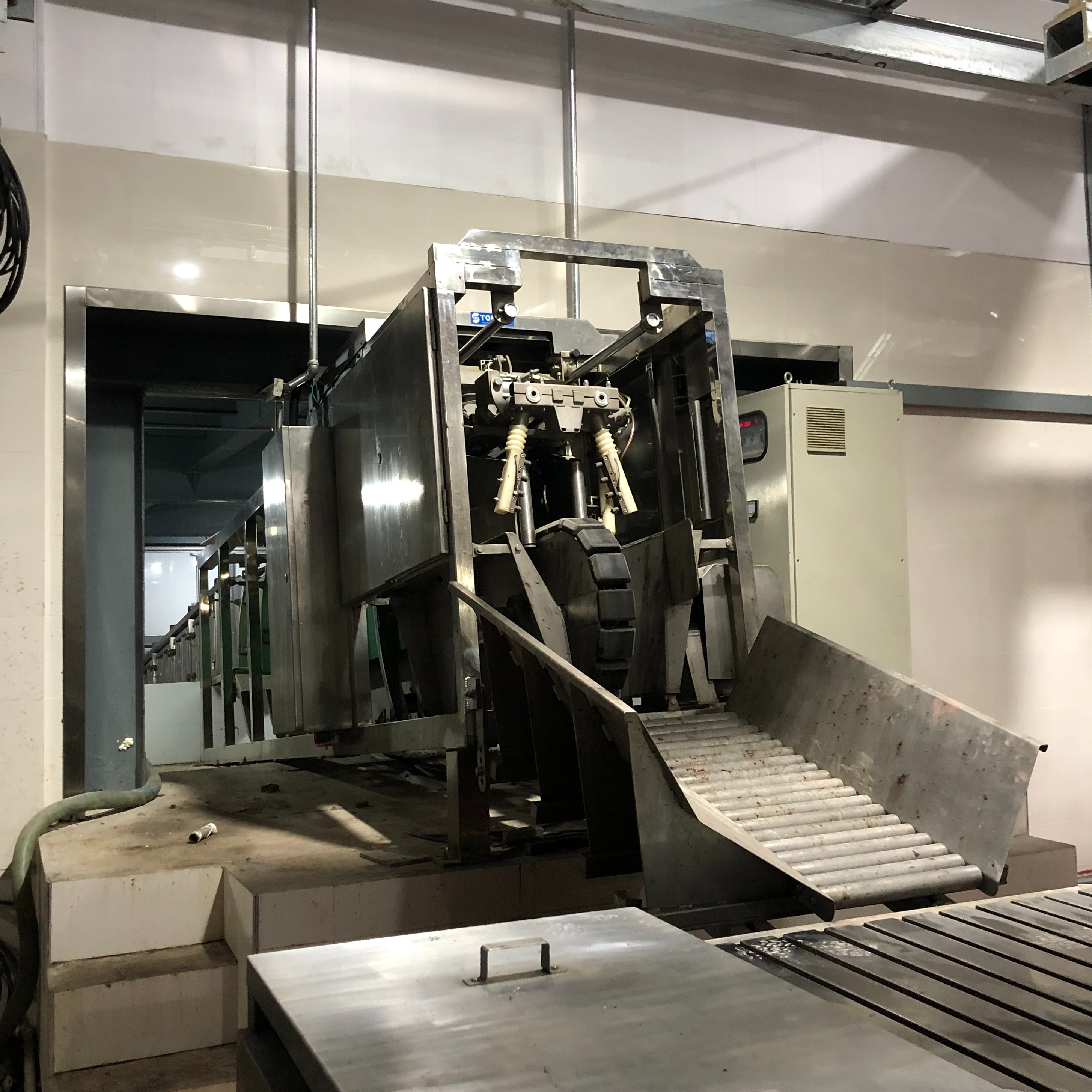

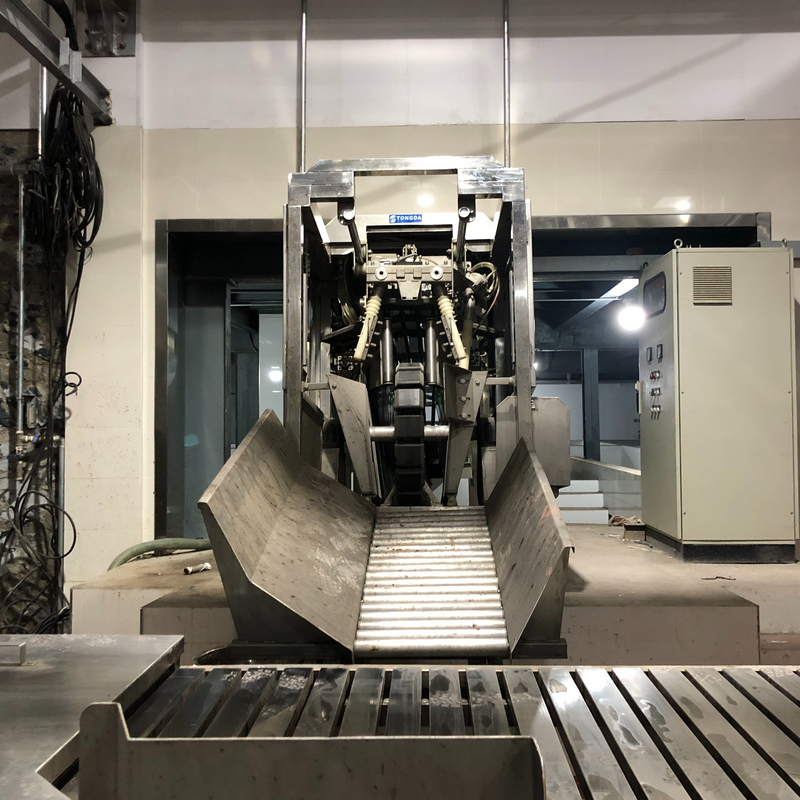

the continuous horizontal low voltage high frequency automatic stunner, with its unique transport system and auto control system, is the most modern electrical stunning system for pigs. Comparing with other stunners, it assures a most effective stun and a consistent meat quality.

single conveyor belt transport the pigs through the machine on the belly and brisket, thus the legs will not touch the floor, and prevent damages to the animals.

in the stunning area, the position of the head is scanned, to guarantee an optimum and constant stunning. Two electrodes are positioned on the head, while the third electrode on the heart gives the animal a relaxation current so that the kicking on the receiving table will be reduced, the sticking and shackling will be more convenience

materials: stainless steel 304
accurate positioning of electrodes, time adjustable
breast voltage adjustable
head current adjustable
constant amperage of head stunning current
3 electrodes
high frequency, about 800HZ
no double stunning
automatic no pig detection
non penetrable electrodes, according to EU & USDA standards
escape without stunning less than 0.01%
capacity: 350 heads per hour
weight range: only groups with a live weight range ±30kg
suitable weight adjustable: 70-110/110-140/140-180kg
stunner dimensions: 3600x1100x1550mm
weight: 1800kg
installed power: 2.2KW
compressed air consumption: 20L per head
PLC control system, with an operation indicator
