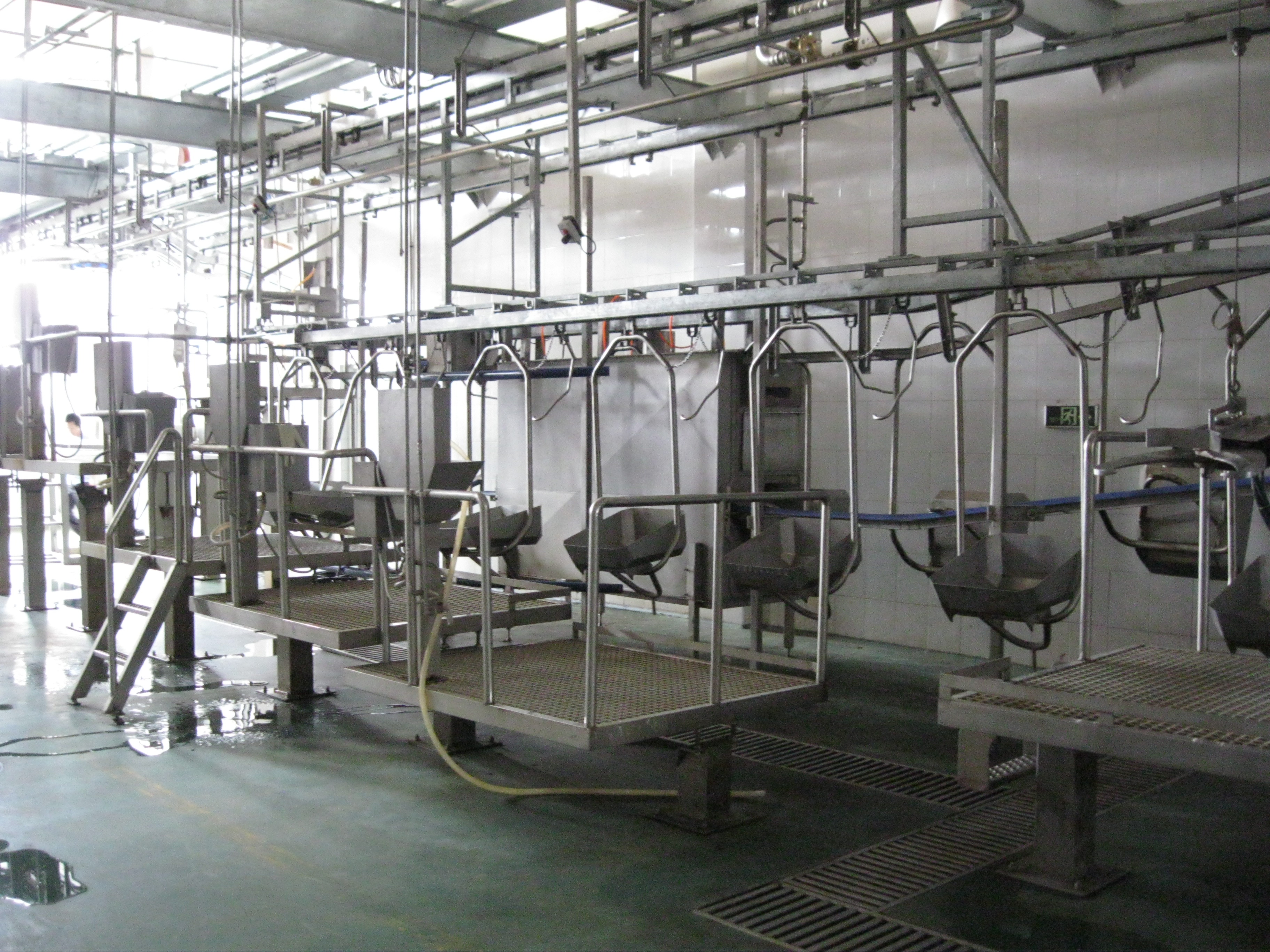

used for offals transport, synchronized with dressing conveyor

suspension structure, runs below the carcasses, thus ensure the white offals drop directly into the receiving pans, and the red offals hang to the hook at the same direction with carcass. labor intensity is reduced and working efficiency is improved

hot-dip galvanized
chain length 31.2m, 24 workstations
loading pitch: 1300mm
double hinged chain, less of wear
nylon roller, ball bearing connection, horizontal running, smoothly
lightweight double sprocket, high strength engineering plastic flexible dents, noiseless, lubrication-free, and easy to replace
double U sections are connected by HALFEN channel
auto lines are connected with steel beams by HALFEN channel
power: 380V 50HZ 1.5KW

include:
1 set of drive and tension station
1 set of steer station
1 set of chain
1 set of chain automatic lubrication device
24 pcs of white offals receiving pans
1 set of white offals pan guiding device
1 set of white offals auto tipping device
24 pcs of red offals hooks
3 set of red offals hook guiding device
1 set of alarm system for offals loosing
1 set of pan and hook washing and sterlizing device
