Dehairing Machine Auto

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

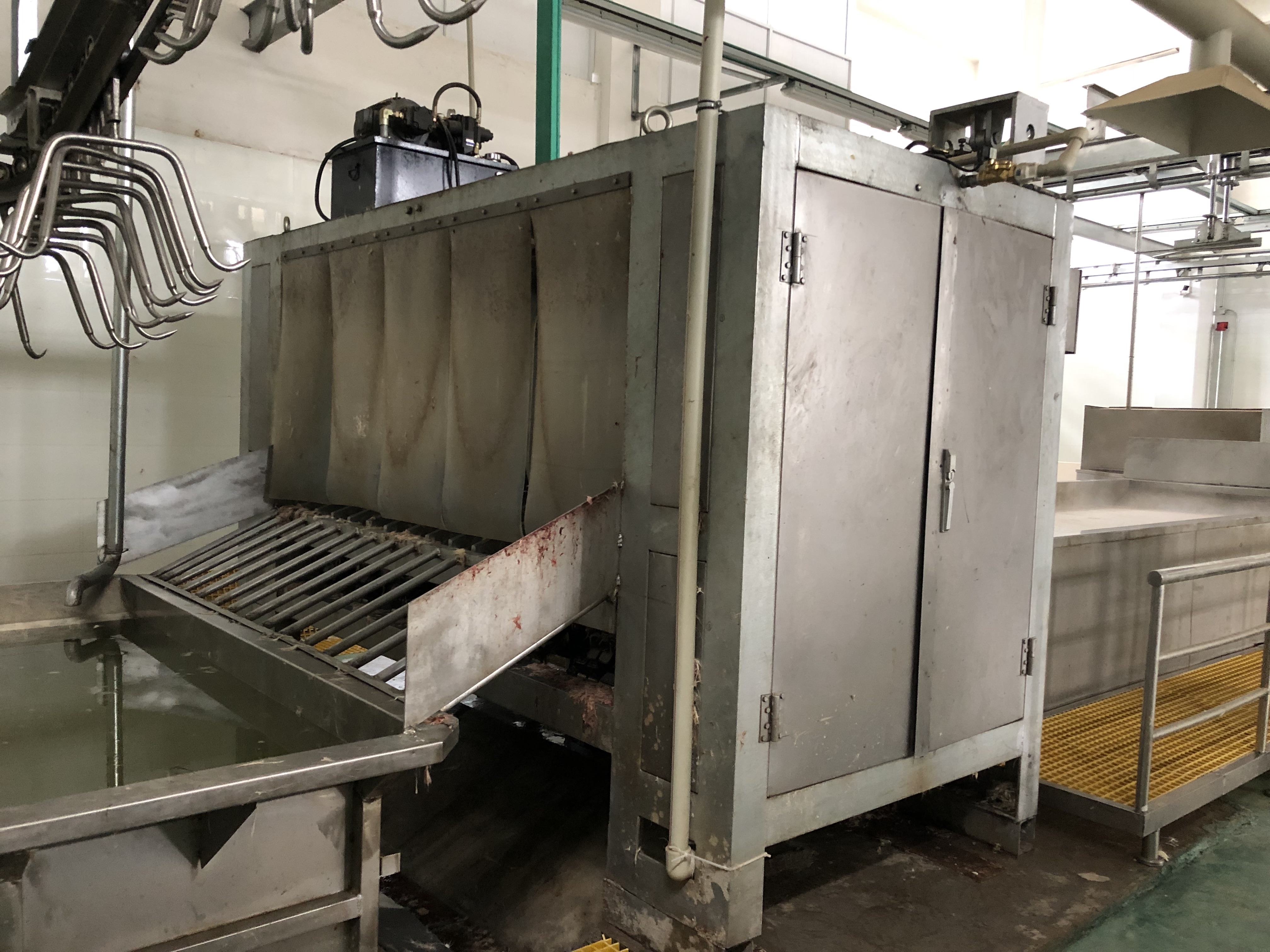

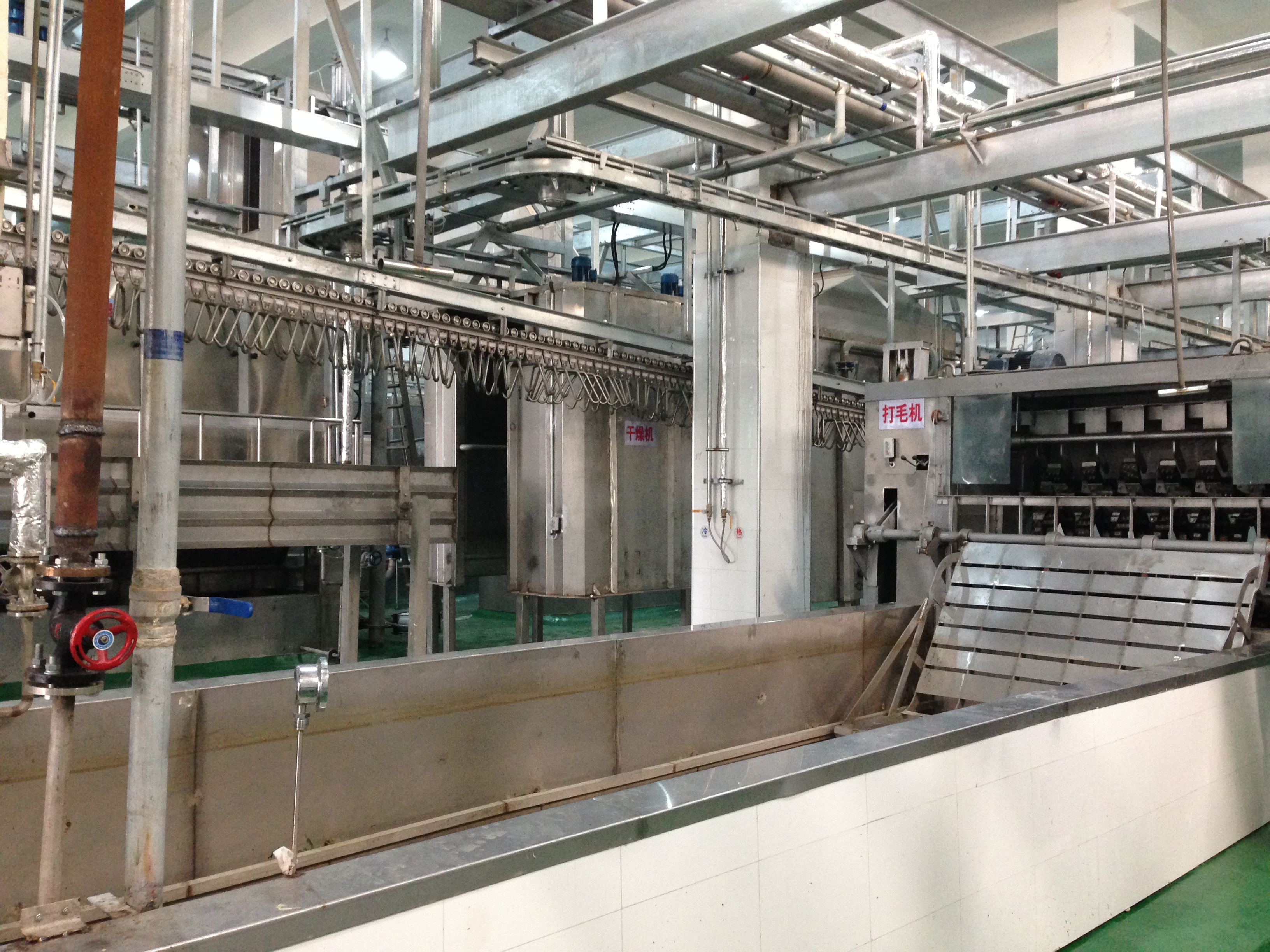

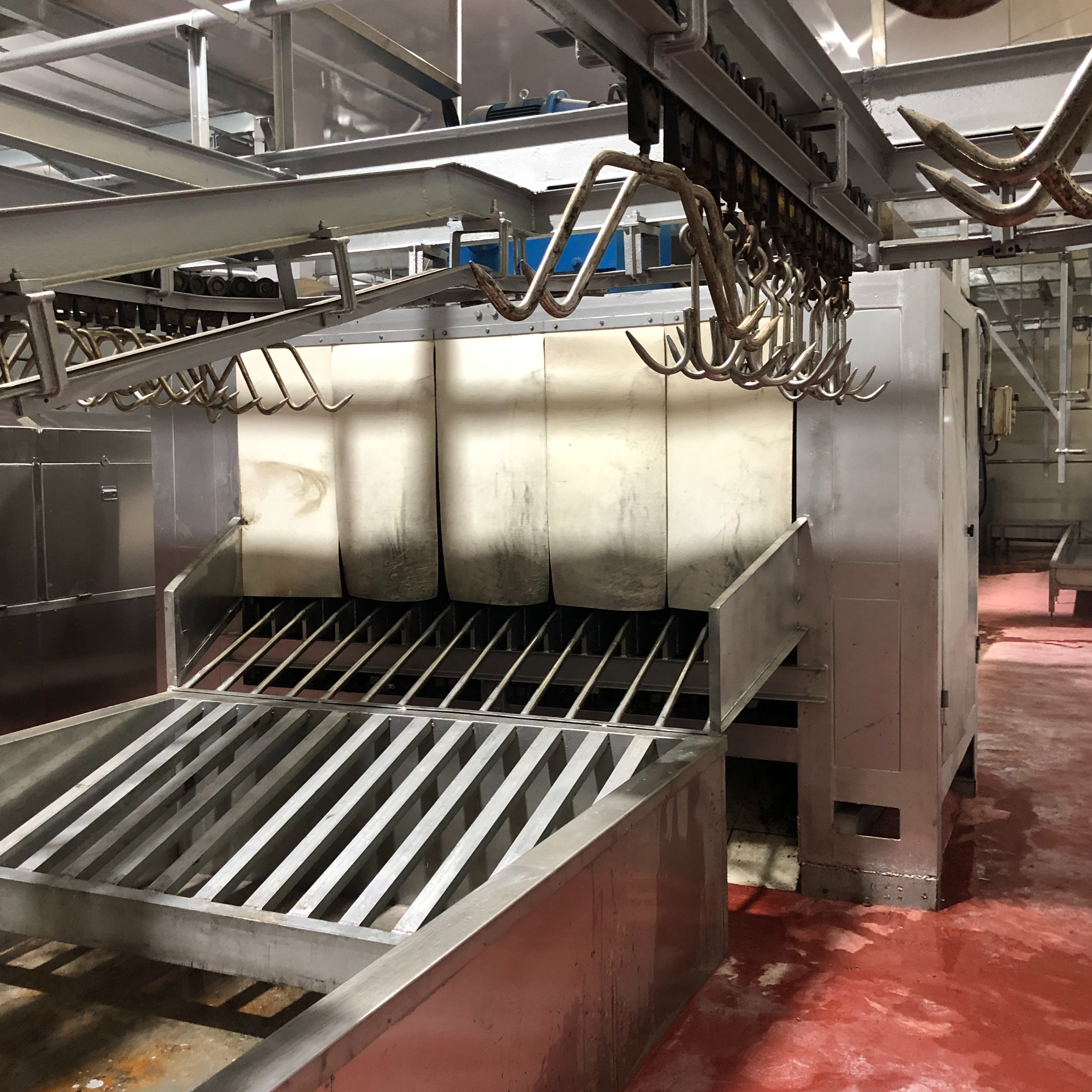

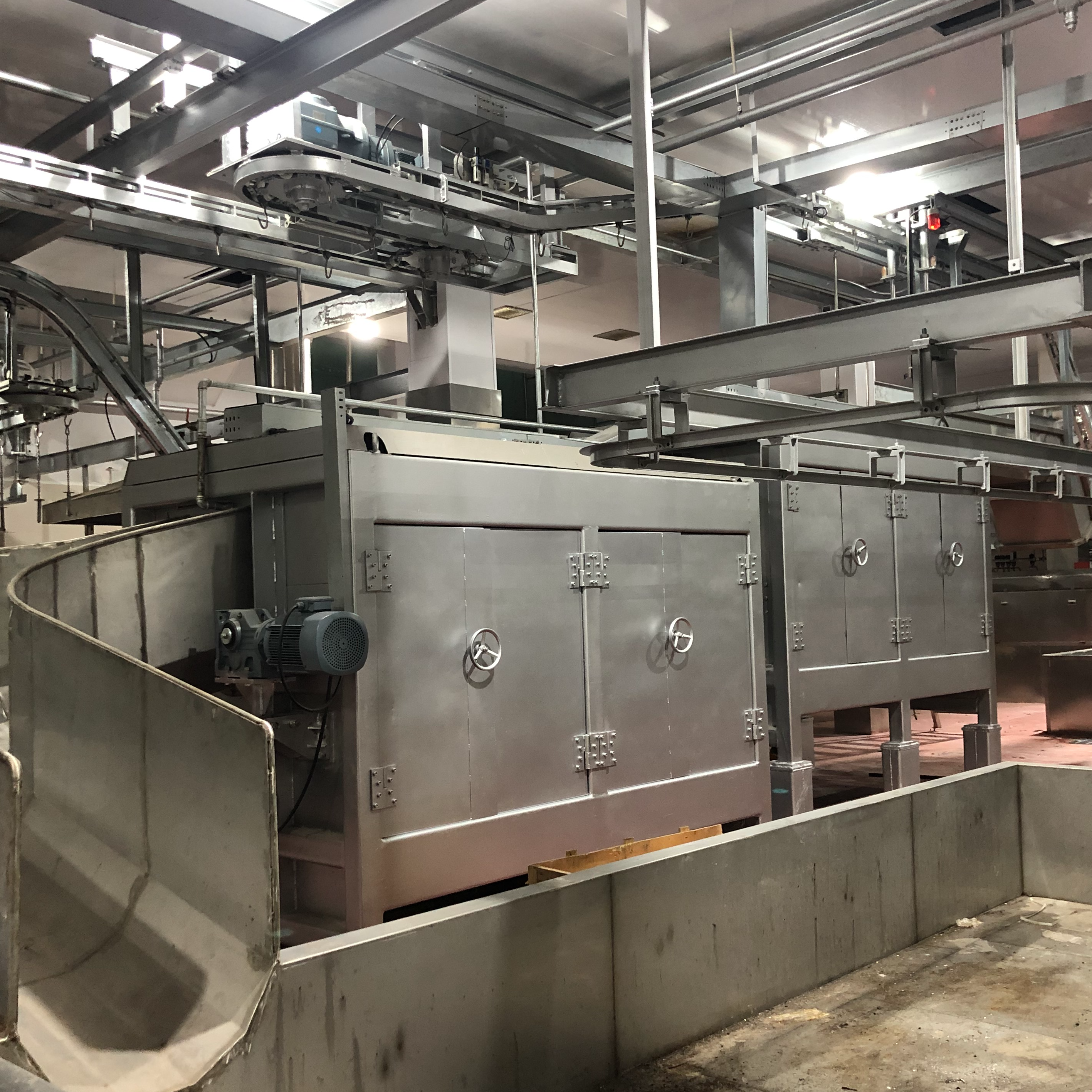

the automatic dehairing machine is used for constantly pig dehairing from scalding system.

the hair of the carcassess is removed by the constantly scraping of the scraper blocks with steel scrapers, which are fixed on the dual roller of the dehairing machine.

meanwhile, the carcasses are rinsed with hot water to ensure optimum effect, and blood and dirt are washed away.

the best dehairing is obtained by installing 2 or more dehairing machines with opposite rotation after each other. pigs will have a forward rotating move due to the U shaping of the supporting grates.

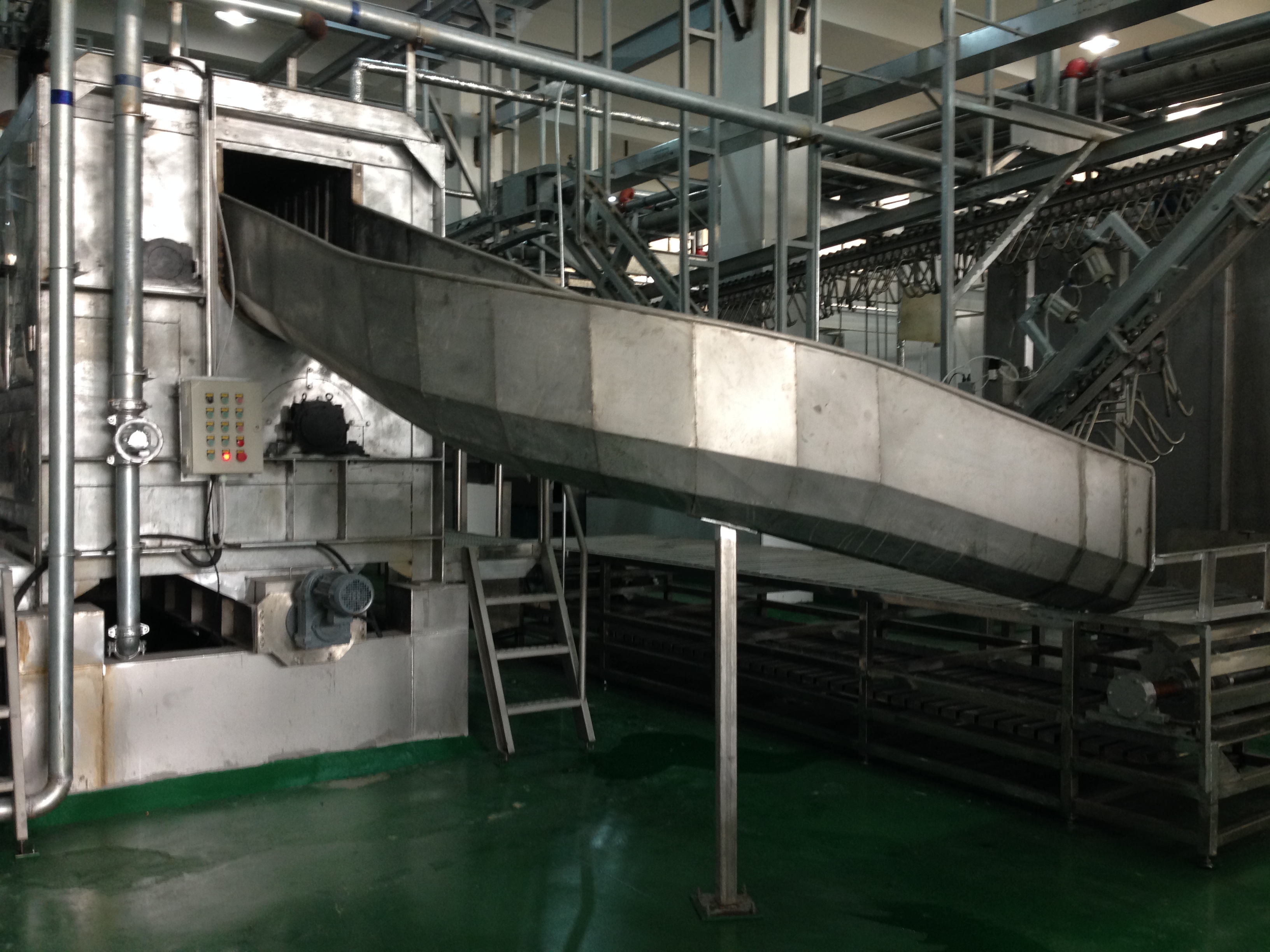

the hair, toe nails and spraying water are transported to one side by using a hair conveyor, and then can be transported to outside.

including 1 dehairing machine
materials: hot galvanized
stainless steel side doors, dual layer, insulation of noise and heat
hot water is sprayed to carcasses by a pump while dehairing
cold water is used for machine inside cleaning
pneumatic existing door, height adjustable
security door switches to prevent injury to operators
dehairing result: ≥98%
skin demage: ≤2%
capacity: 180 pigs per hour, live weight up to 300kg
dehairing machine dimensions: 3700x2000x2200mm
U supporting grates: 21 pcs
scraper blocks: 120+200 pcs
dehairing drive gear motor: 11KW+4KW
hair conveyor power: 1.5KW
weight: 14 ton for each
water consumption: approx. 0.8 ton/hour for each

  • TONGDA
