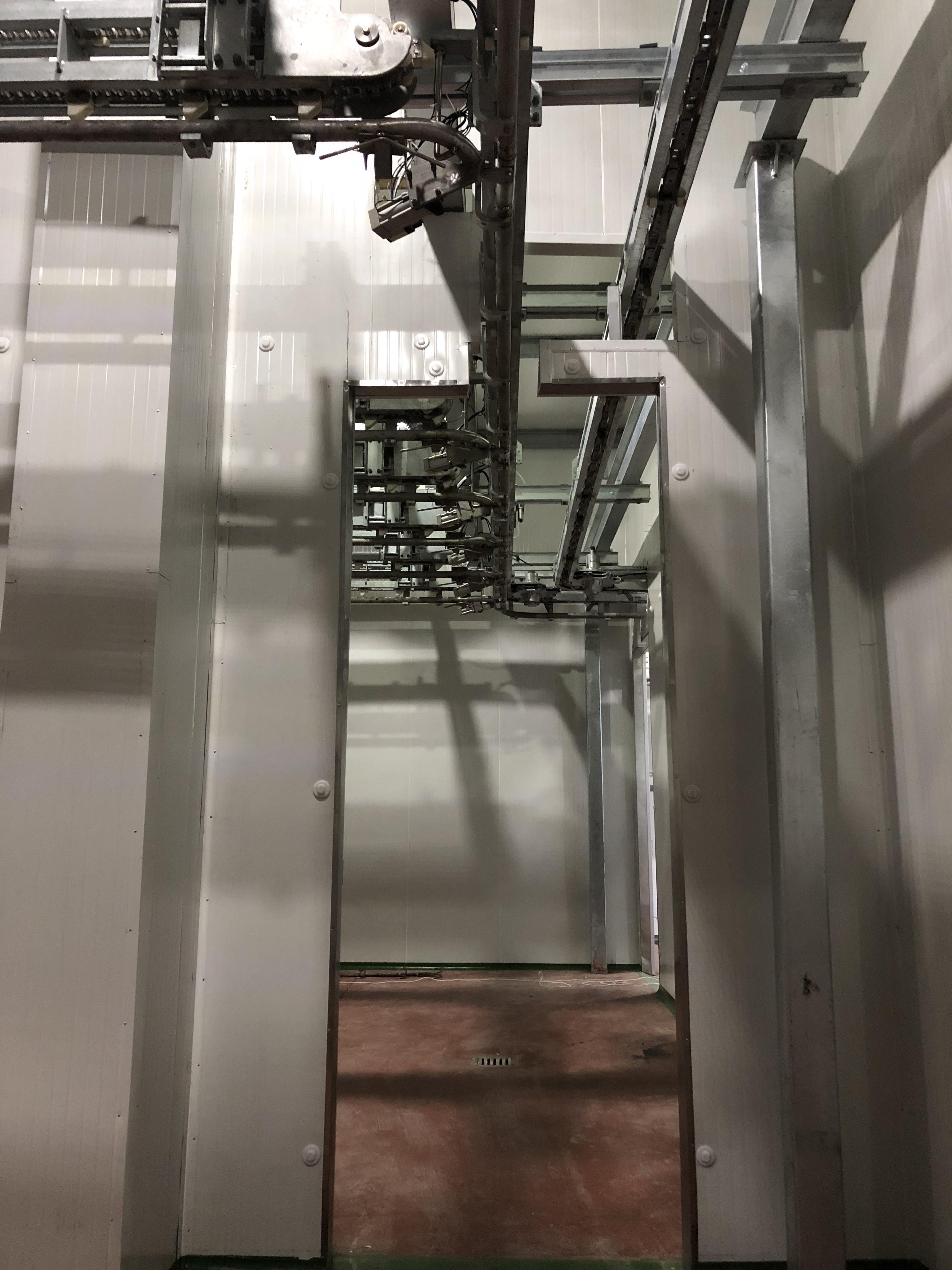

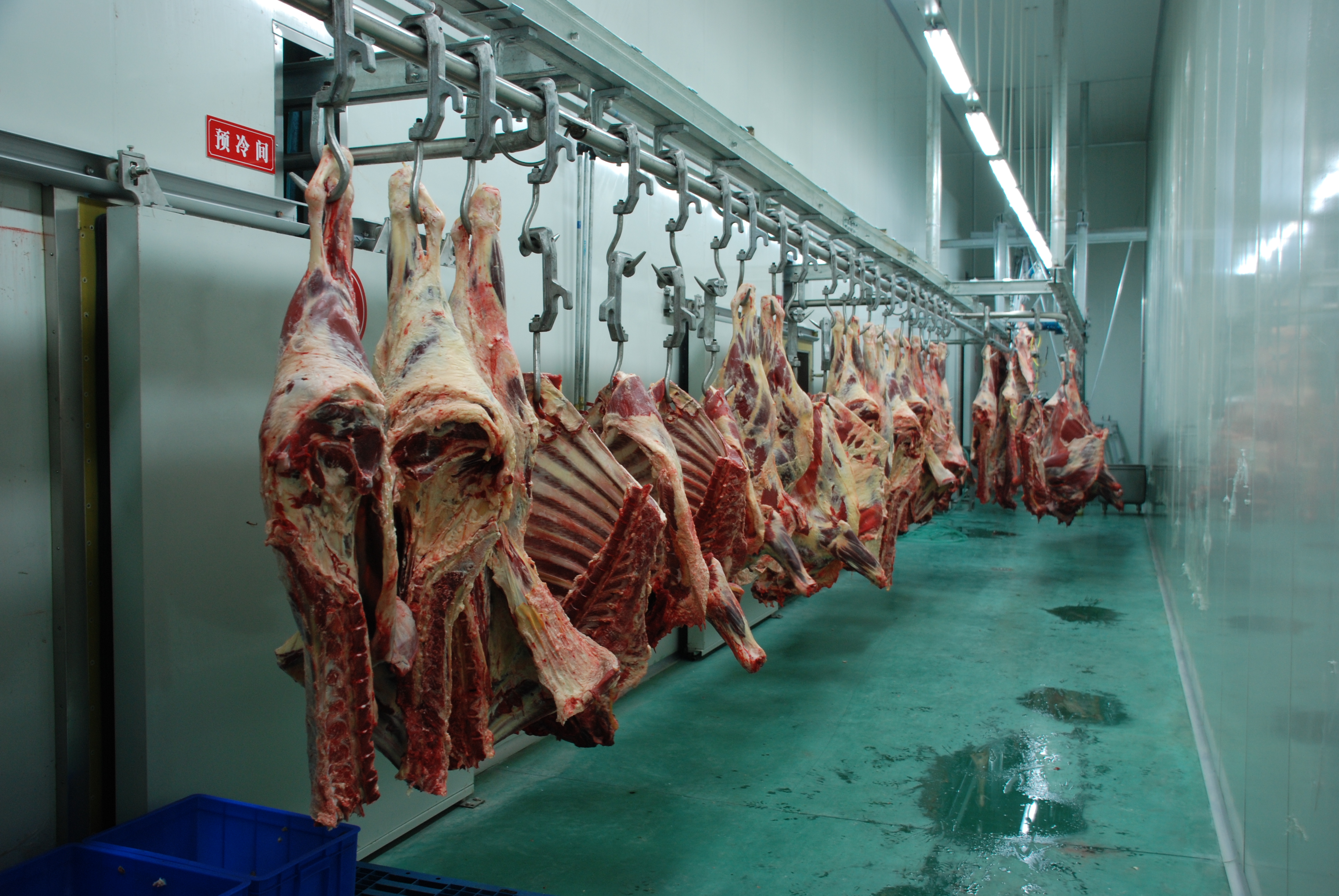

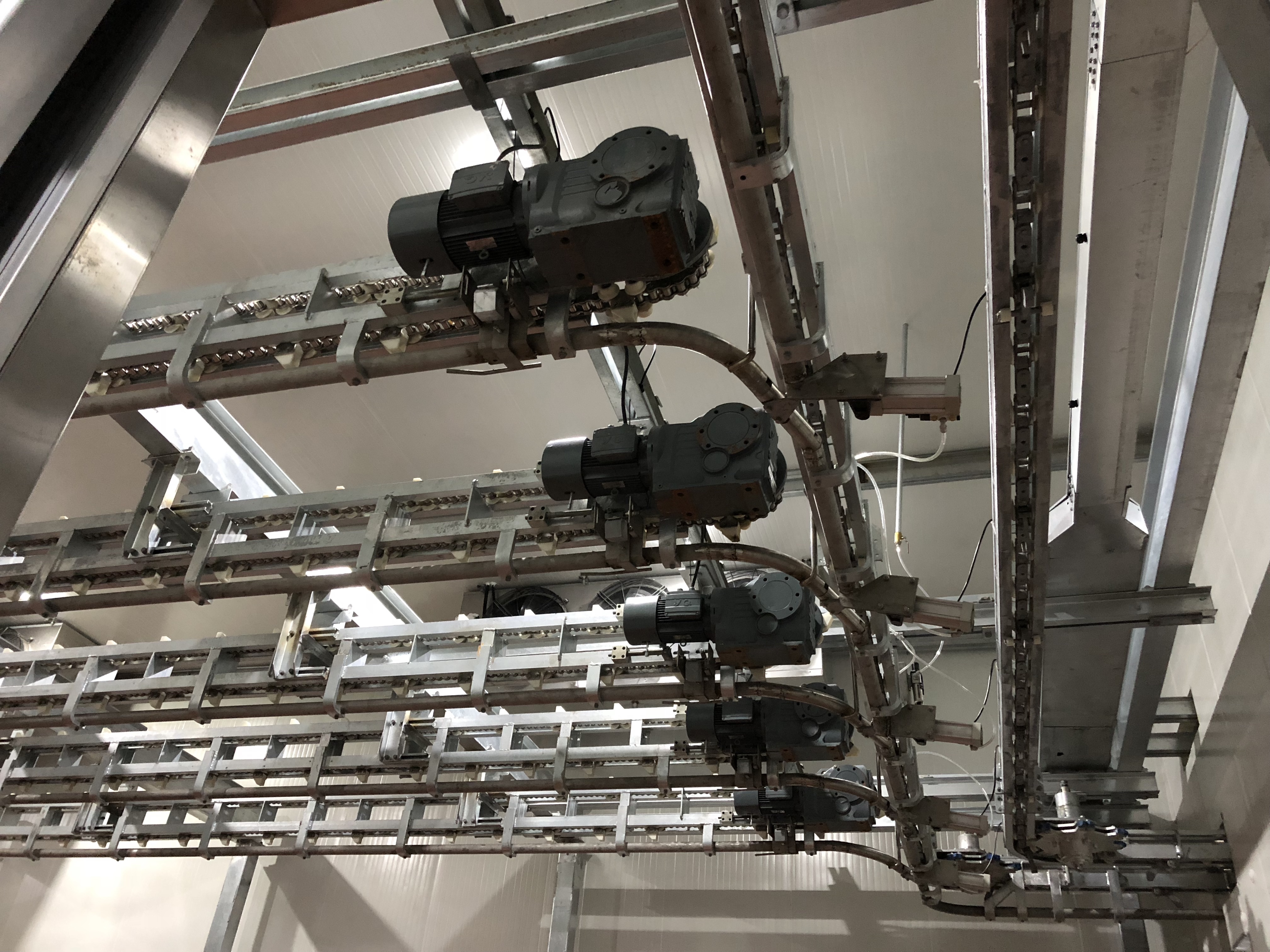

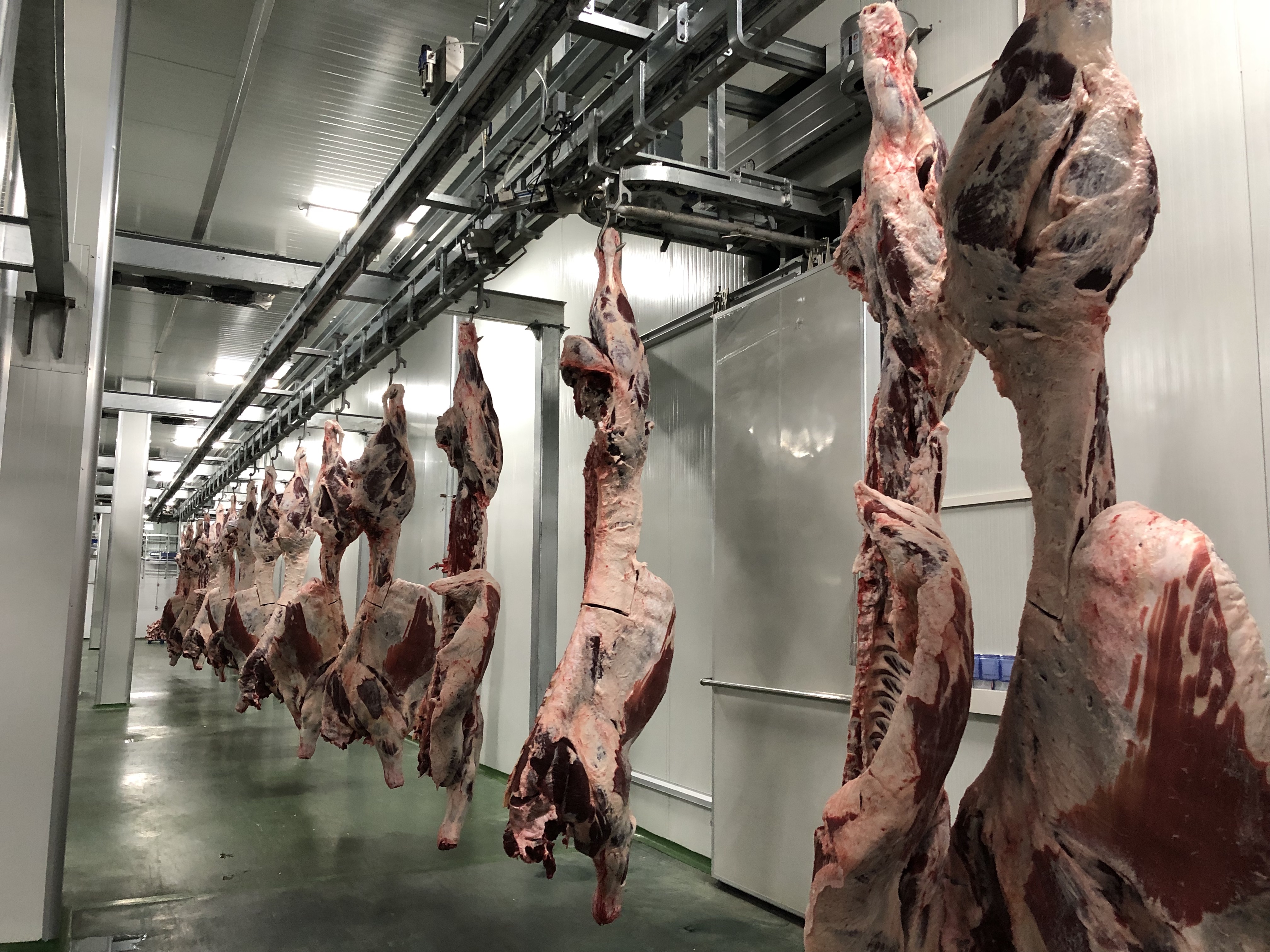

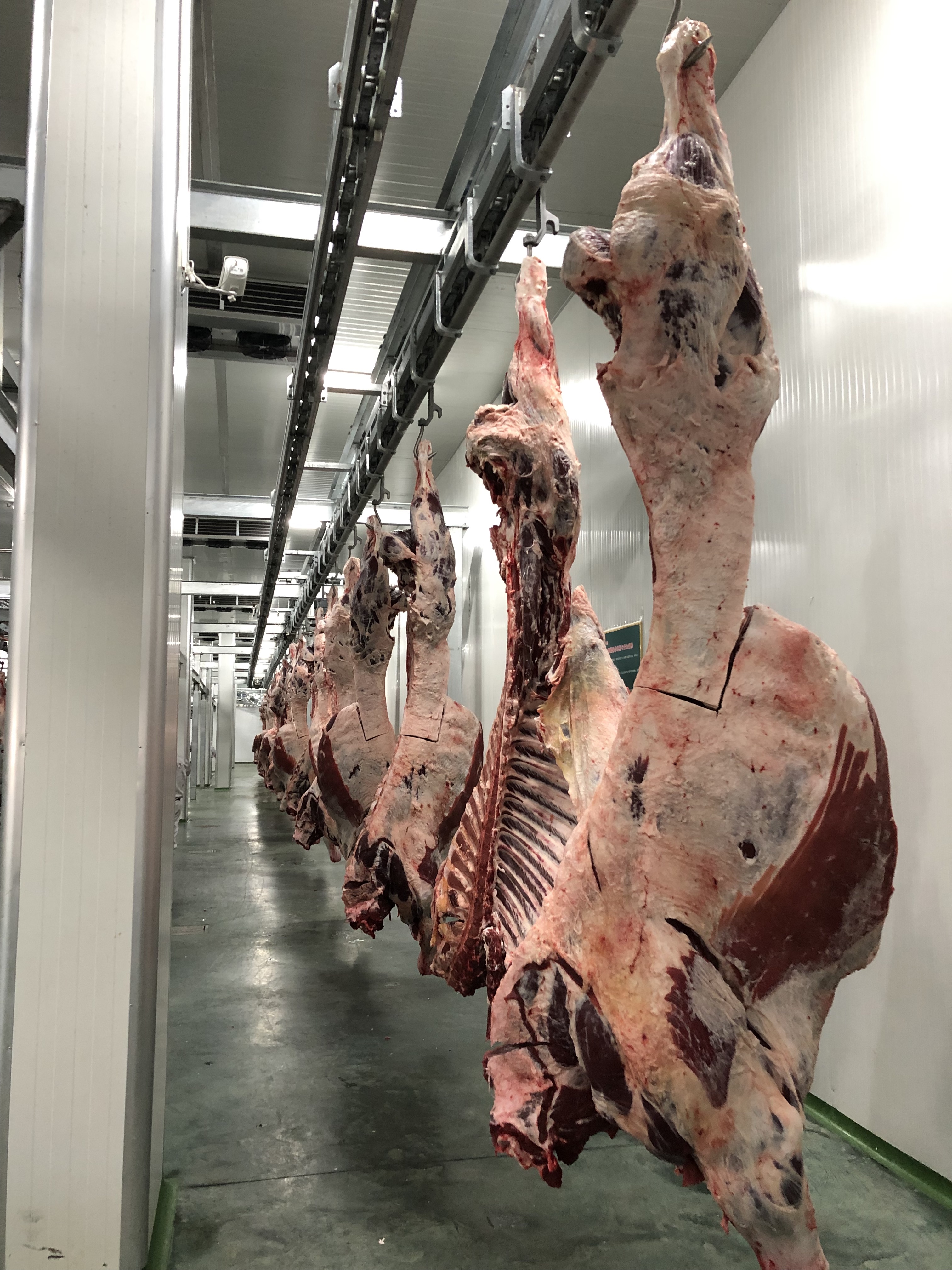

Fully Auto Chill System

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

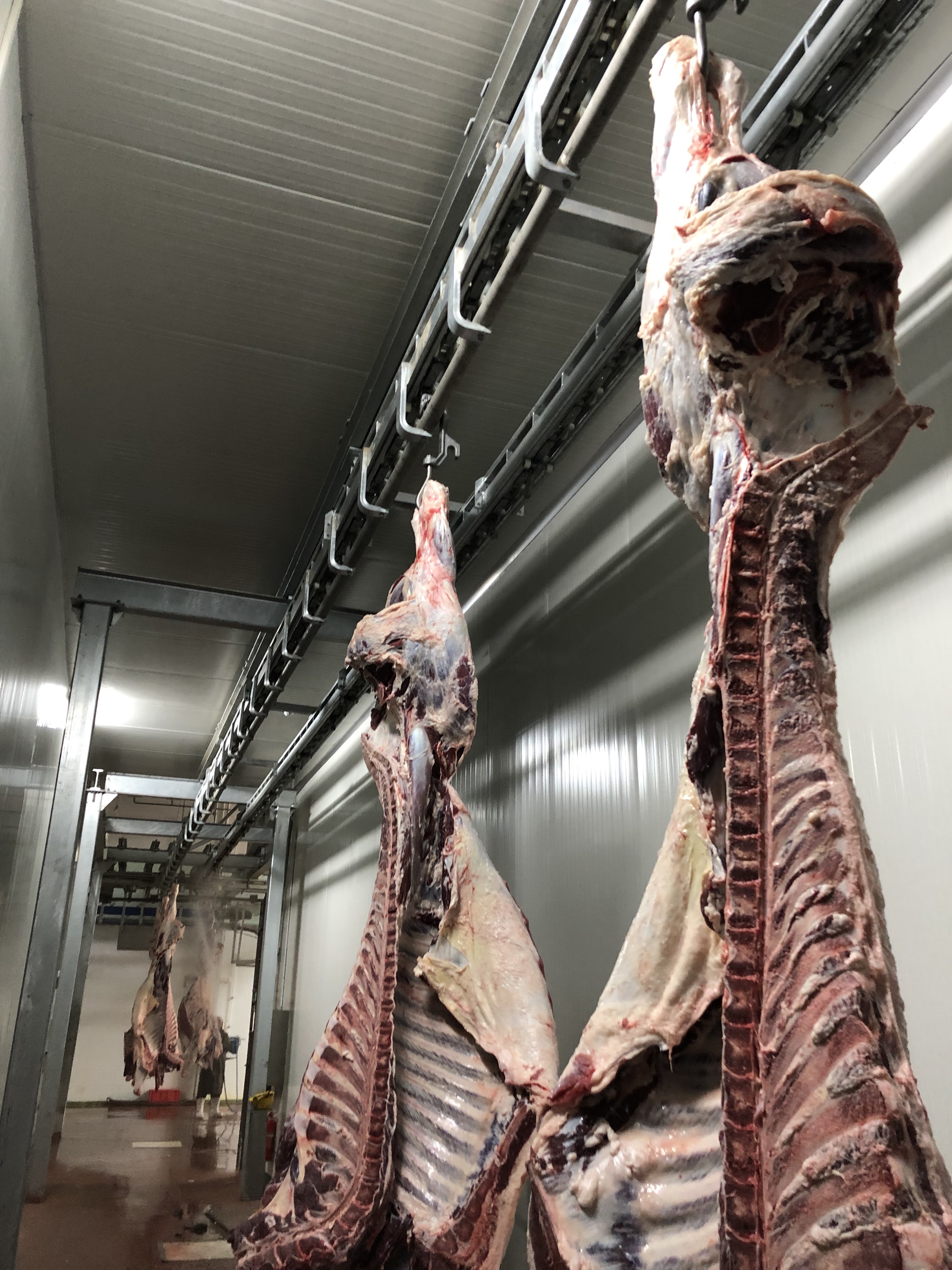

used for livestock carcass processing on the chain

hot-dip galvanized
chain length 158.08m, 38 workstations

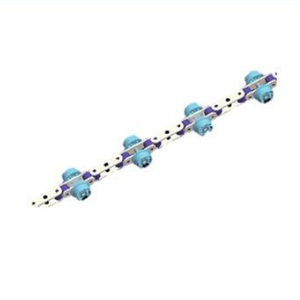

double hinged chain, less of wear
nylon roller, ball bearing connection, horizontal running, smoothly
lightweight sprocket, high strength engineering plastic flexible dents, noiseless, lubrication-free, and easy to replace
Φ60 x4.5mm tube rail, hanging below double U sections by hangers
double U sections are connected by HALFEN channel
auto lines are connected with steel beams by HALFEN channel
tube rails are connected with steel beams by hangers
power: 380V 50HZ 3KW

include:
1 pneumatic infeed device
1 set of drive and tension device
9 set of steer device
1 set of chain
1 set of chain automatic lubrication device
7 pneumatic switch
